Keychron K3 MAX ANSI 75% layout 84 Key Full Assembled Brown Switch White Led - Gateron Mechanical Wireless Low Profile QMK Custom Keyboard K3M-A3

SPECIFICATION


Number of Keys: 84 (75%)

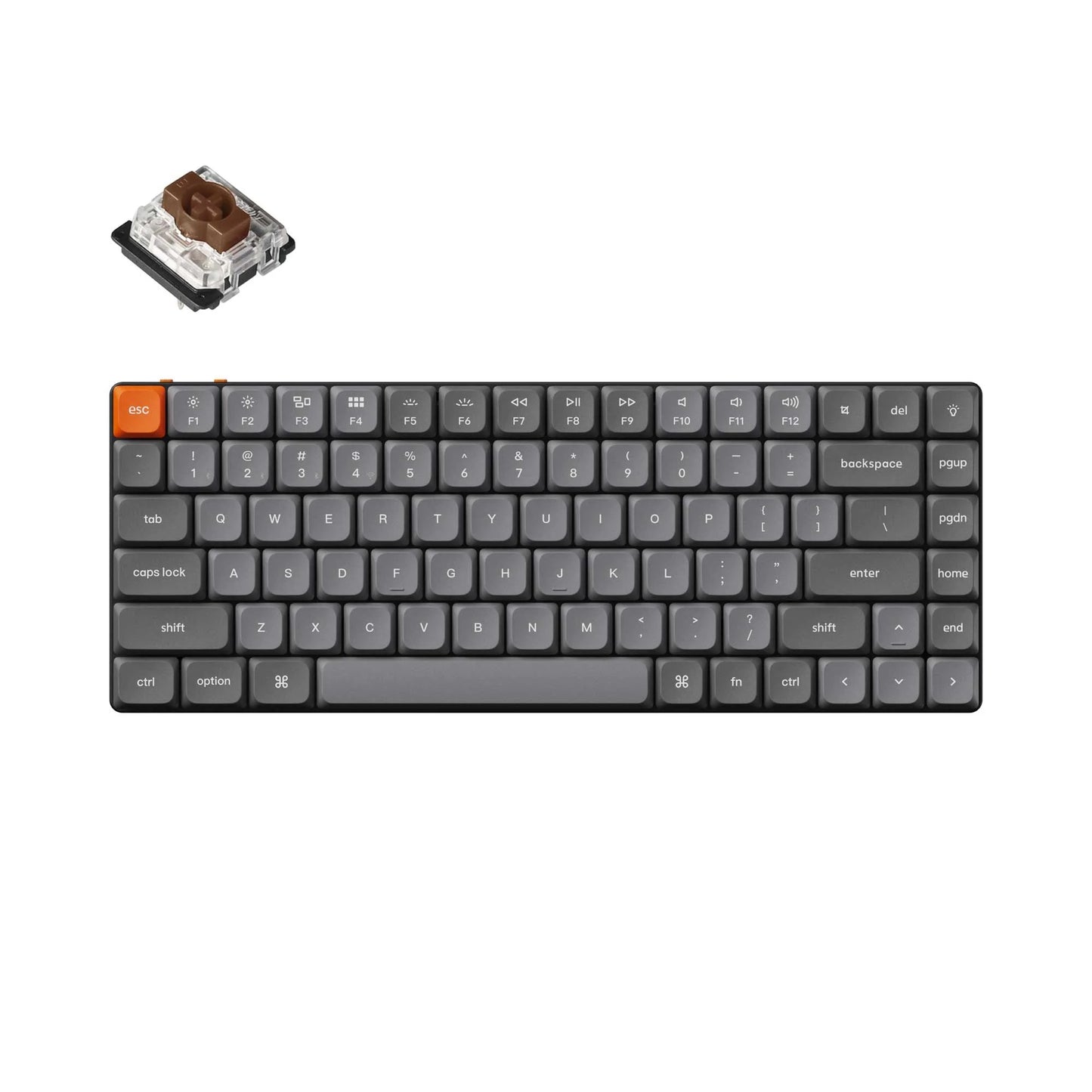

Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile double-shot PBT
Layout: ANSI
Polling Rate (2.4Ghz and Wired Mode): 1000Hz
Polling Rate (BT Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K3 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER


Backlit: White backlight
Battery: 1550 mAh rechargeable li-polymer battery
Wireless  Working Time (Backlit off): Up to 78  hours (Lab test result may vary by actual use)
Wireless  Working Time (White-Backlight): Up to 40 hours (Lowest brightness)
Connection: 2.4 GHz / Bluetooth / Type-C wired
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K3 Max
Compatible System: macOS / Windows / Linux

PHYSICAL UNIT


Dimension: 306 x 116 mm (12.04 x 4.56")
Weight: 525 g / 1.16 lbs
Height without keycap (front): 11 mm (0.43")
Height without keycap (rear): 15 mm (0.59")
Height incl. keycap (front): 17 mm (0.66")
Height incl. keycap (rear): 22 mm (0.86")
Typing Angle: 2.5º, 4.2º and 6.5º
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment: -10 to 50℃
