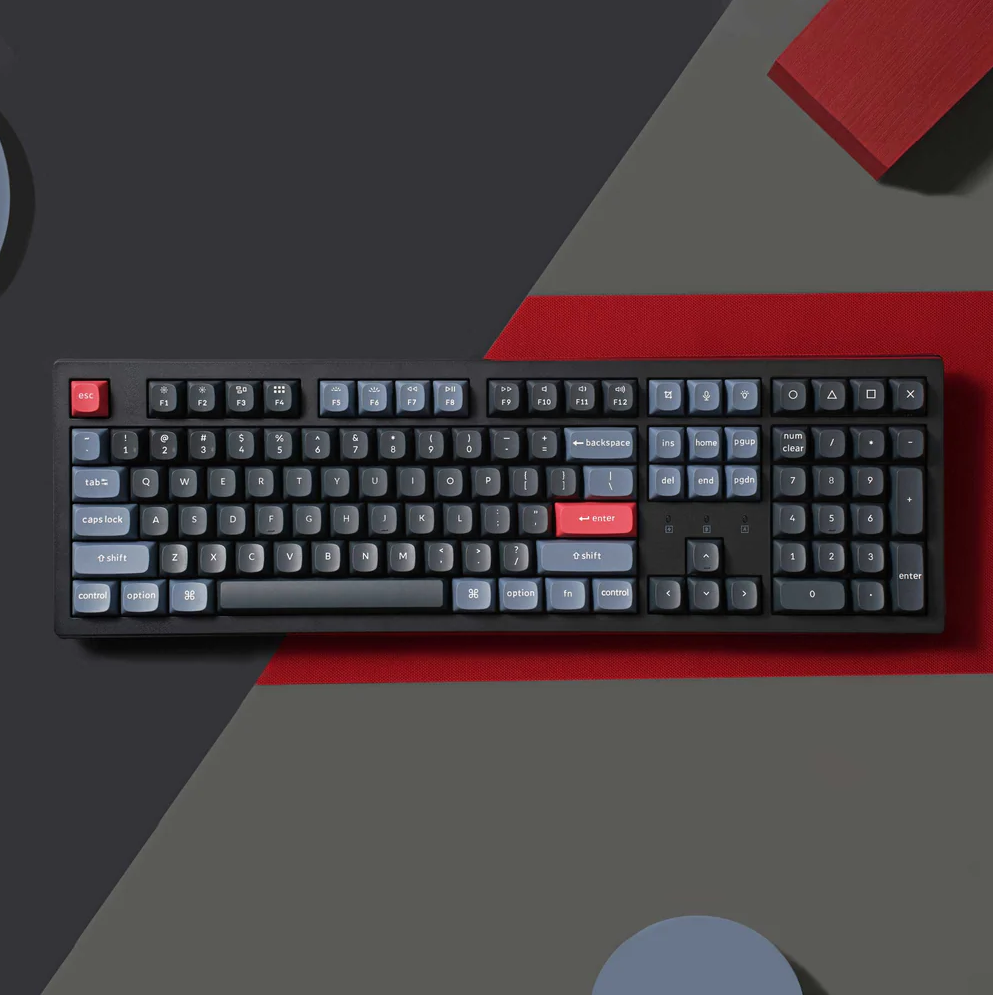

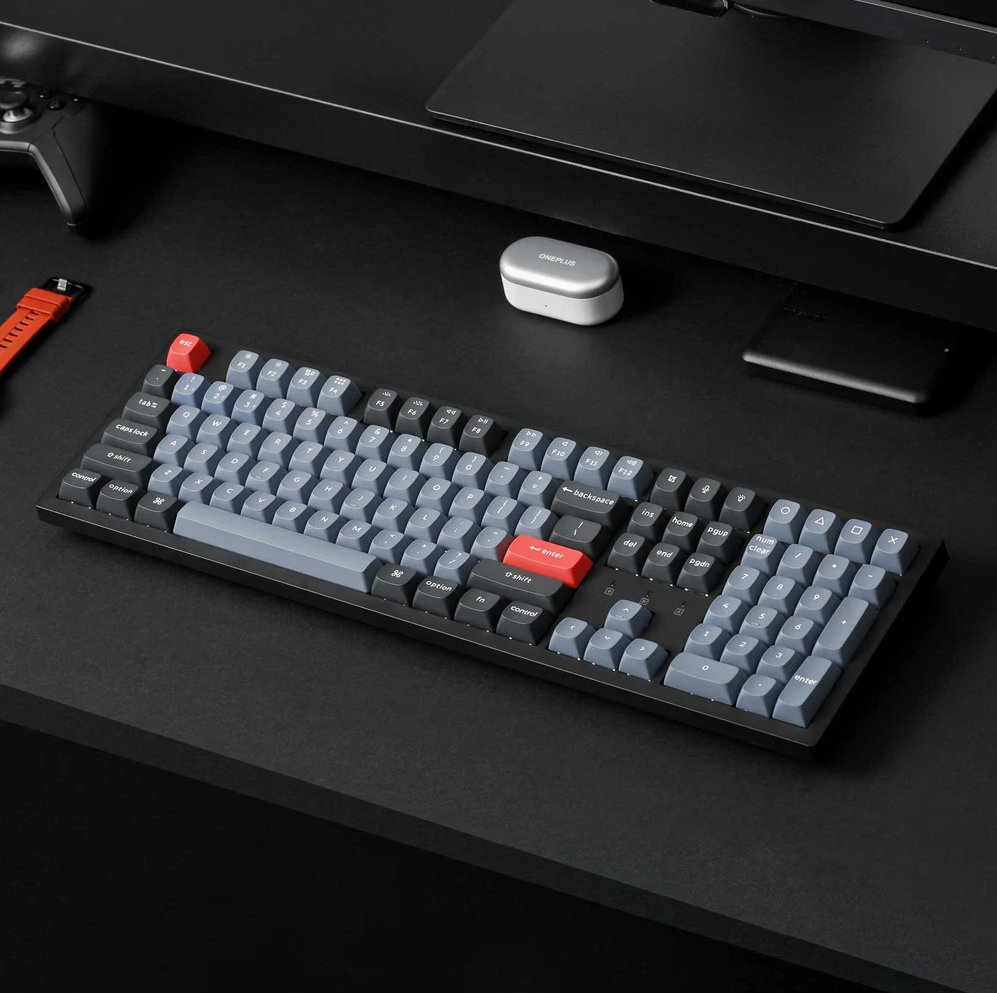

Keychron K10 Pro QMK/VIA Wireless Mechanical Keyboard Red Switch

SPECIFICATION


Number of Keys: 108 (100%)

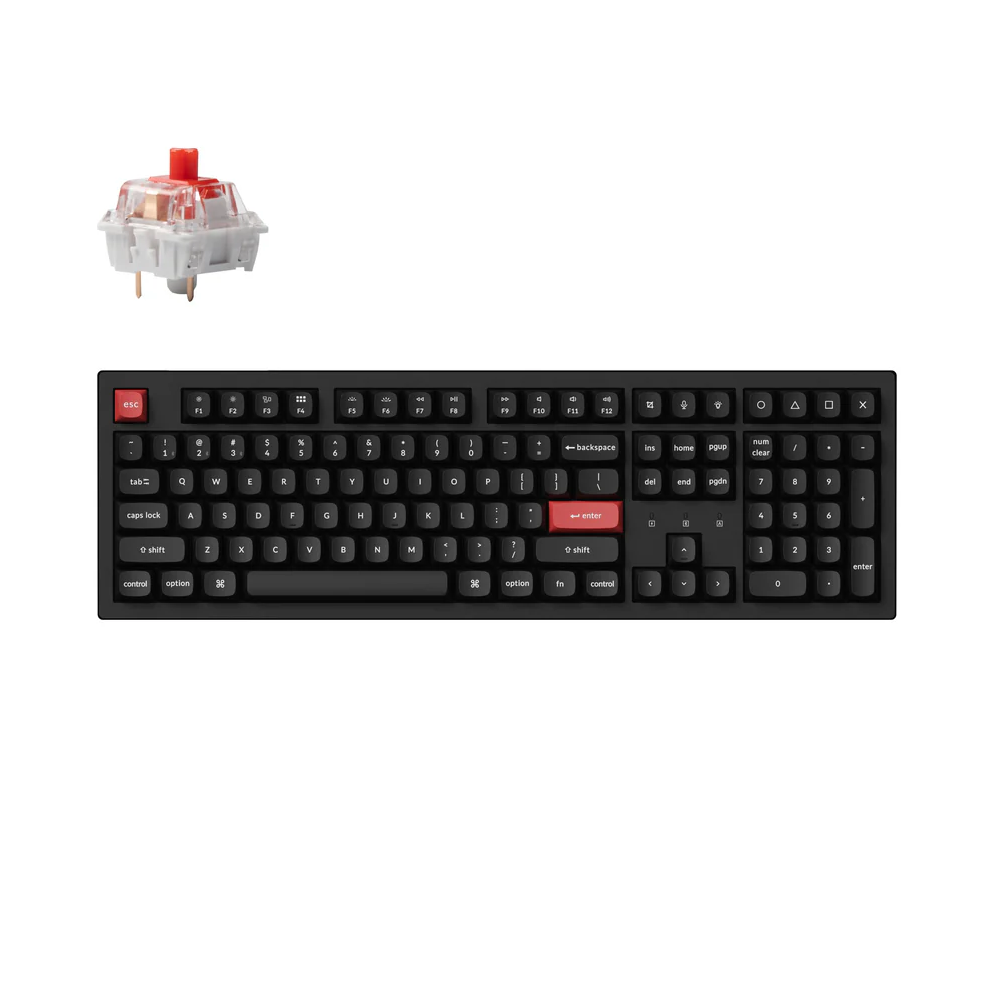

Switches: Keychron K Pro Mechanical
Switch Face: South-facing
Stabilizers: PCB-mounted screw-in stabilizers
Number of Multimedia Keys: 12
Frame Material: ABS
Plate Material: Steel
Keycap Material: Double-shot PBT (backlight non-shine-through)
Keycap Profile: OSA (OEM profile with spherical-angle)
Layout: ANSI
Polling Rate (Wired Mode): 1000Hz
Polling Rate (Wireless Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes

CONNECTIVITY AND POWER


Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 4000 mAh rechargeable li-polymer battery
BT Working Time (Backlit off): Around 260 hours (Lab test result may vary by actual use)
BT Working Time (RGB): Around 130 hours (Lowest brightness)
Connection: Bluetooth and Type-C cable
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K10 Pro
Compatible System: macOS/Windows/Linux

PHYSICAL UNIT


Dimension: 445 x 138 mm (17.52 x 5.43")
Weight: About 1495 g / 3.29 lbs
Height without keycap (front): 23.2 mm (0.91")
Height without keycap (rear): 30.8 mm (1.21")
Height incl. keycap (front): 32.8 mm (1.29")
Height incl. keycap (rear): 40.4 mm (1.59")
Typing Angle: 3.5º, 7º and 10.5º
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment: -10 to 50℃
